BD71631QWZ
低電圧バッテリ用 充電制御IC
最終販売
BD71631QWZ
低電圧バッテリ用 充電制御IC
製造中止を申請中の製品です。
主な仕様
BD71631QWZ の代替品
| Part Number |
|
|
|---|---|---|
| Ordering Part Number | BD71631QWZ-TR | BD7090NUV-E2 |
| Similar Level | - | 類似特性 |
| Data Sheet | ||
| Supply Status | Last Time Buy | Active |
| Package | UMMP10LZ1824 | VSON010V3030 |
| Unit Quantity | 2500 | 3000 |
| Minimum Packing Quantity | 2500 | 3000 |
| Packing Type | Taping | Taping |
| RoHS | Yes | Yes |
| Supply Voltage (Min.)[V] | 2.9/4.0 (Charge Current 30mA/300mA) | 2.9/4.0 (Charge Current 30mA/100mA) |
| Supply Voltage (Max.)[V] | 5.5 | 5.5 |

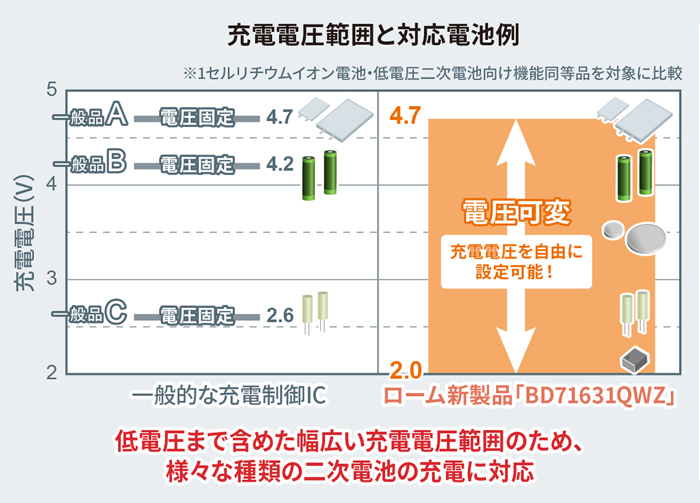

| Charge Voltage [V] | 2.0V~4.7V(±2%) | 1.2V~4.7V(±2%) |
| Temperature (Min.)[°C] | -30 | -30 |
| Temperature (Max.)[°C] | 105 | 105 |
| Package Size [mm] | 2.4x1.8 (t=0.4) | 3.0x3.0 (t=1.0) |
リファレンスデザイン / アプリケーション評価キット
-
- Evaluation Board - BD71631QWZ-EVK-001
This EVK is for evaluating the linear charging IC BD71631QWZ, and charges 4.2V from the 5V input voltage. BD71631QWZ accepts a power supply input range of 2.9V to 5.5V and generates a charging battery voltage ranging from 2.0V to 4.7V using external resistors. If the charging current is VIN ≥ 4V, it can be used up to 300mA under the condition of VIN-VOUT ≥ 1V and up to 100mA under the condition of VIN-VOUT ≥ 0.3V. If 2.9V ≤ VIN ≤ 5.5V, it can be used up to 30mA under the condition of VIN-VOUT ≥ 0.3V. The charging current can be set with an external resistor. The termination current can be set from 50μA to 10mA using external resistors. Additional protection functions include a built-in Fixed 10-hour Safety Timer, UVLO(Under Voltage Lock Out), TSD(Thermal Shutdown Detection), and Battery Over Voltage Protection.
-
- Reference Design - REFLVBMS001-EVK-001
This collaboration board charges the EnerCera® Pouch rechargeable battery manufactured by NGK, and outputs the power stored in the EnerCera® by stepping down and stabilizing it. The Power Supply and RESET ICs with Nano Energy™ echnology maximizes the battery life.
